The Tool-Architect of Wohlhaupter is a configurator for modular system tools.
Search and filter funktions support the tool selection.
Tool assamblies and components can be shown as a 2D view or a 3D model.
Through the Shopping cart the configured tool assemblies can be requested.
The Tool-Architect of Wohlhaupter calls for a WebGL capable browser, such as IE11, Google Chrome or Mozilla Firefox.
Here you can check if your browser supports WebGL.
Cookies must be accepted.
To register and sign in once. Registration is necessary for downloads and to save drawings and proposals.
A click on
allows you to change your data.
find and assamble of matching tool components.
setting of language and measure (metric/inch).
in order to request a firm Proposal.

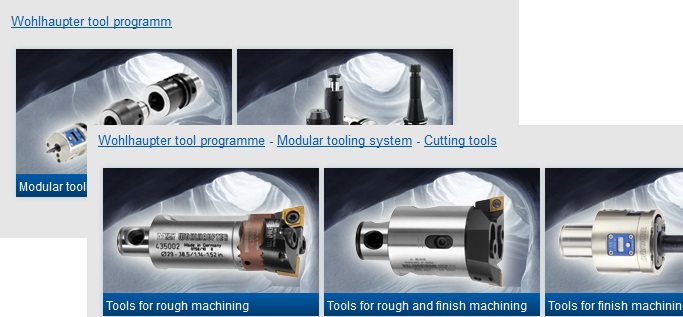

find tool components through different criteria.
The same searching and filter functions are available like in the configuration section.

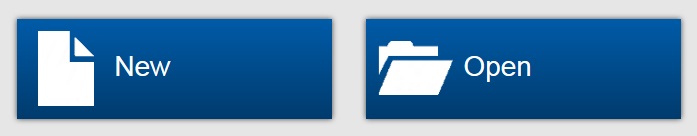

For opening an existing or new tool configuration.

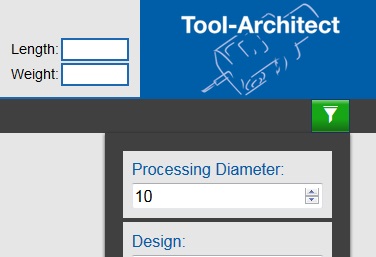

A click on the filtericon opens an input mask where, the number of components can be limited. In this case a diameter 10 mm should be machined.
By selecting the tool you get a list of possible/feasible components.

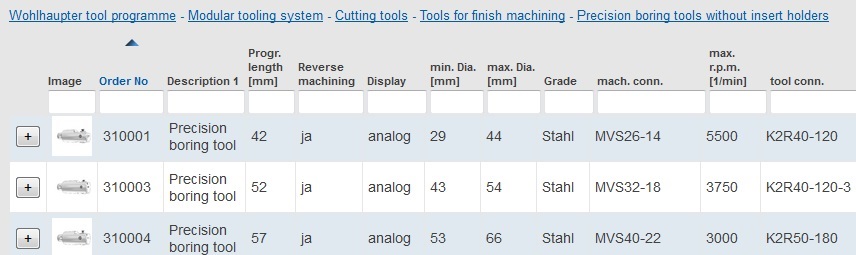

The columns can be sorted by a click on the column titel.
Inputs in the first line filters the indicated components.
Click
to take into complete assembly.
Click into the row to get more details of this particular tool.
Here you can adjust the diameter if the component allows to do so.

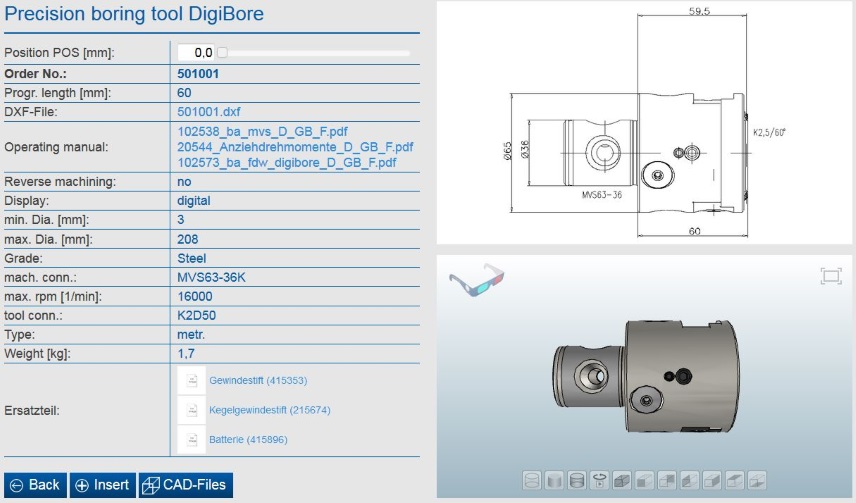

Insert will take the component in to the tool selectio, CAD-File will shows drawing and model of the component and opens a download section. You have to be registered to download files.

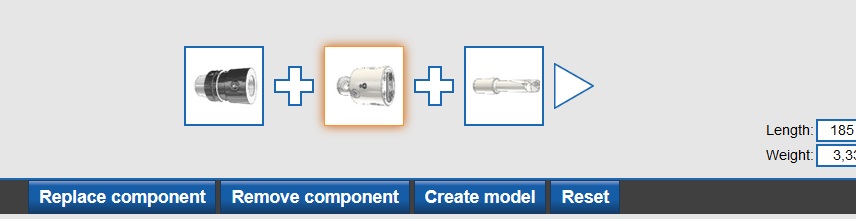

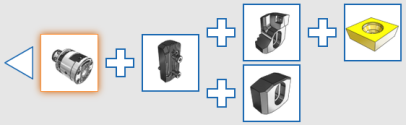

The glimmer arround the arrow shows the direction in which you can add components. The direction can be changed by a click.
"Marked" components can be replaced, or removed if they are at the beginning or end.
Reset deletes current tool selection.

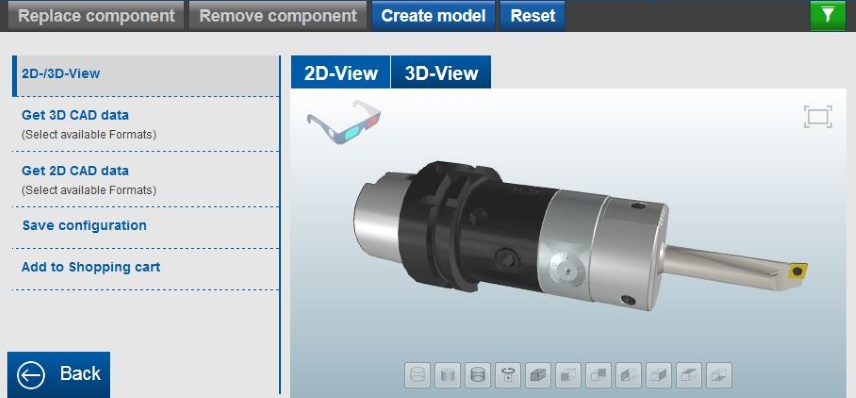

Creat (whole) model shows 2D- and 3D designs of the tool selection, which can be downloaded..
The configuration can be saved and re-opend if logged in.
If you add to cart, the configuration will be saved automatically.

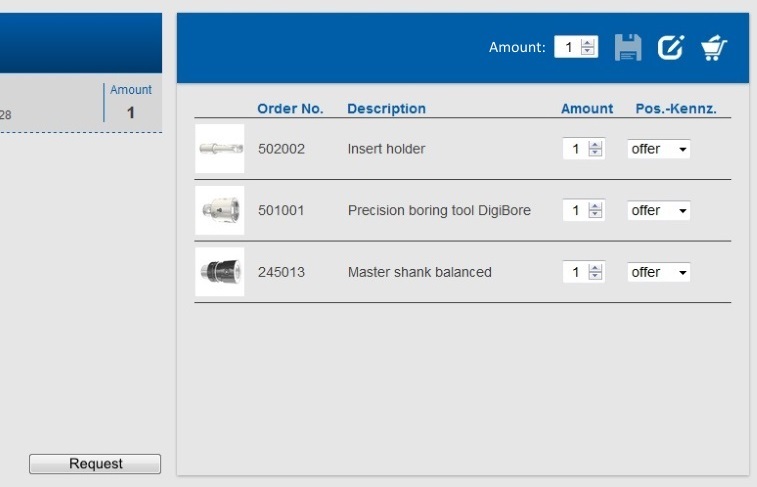

In the cart the quantity for each component can be adjusted and a firm quote can be requested.
It is not possible to assemble a tool with external display and serrated slide.
Either the serrated slide or the external diplay can be attached.
